The Code Envelopes Window

<< Click to Display Table of Contents >>

Navigation:  Additional Features >

The Code Envelopes Window

Additional Features

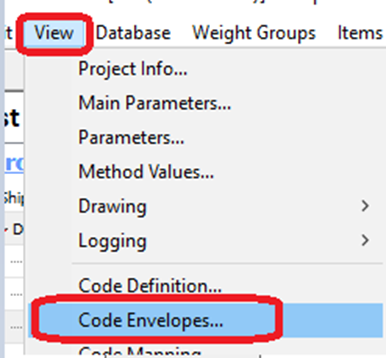

The Code Envelopes window offers a convenient way of checking the items tagged to a user defined code structure. To open the window, from the View menu, select Code Envelopes….

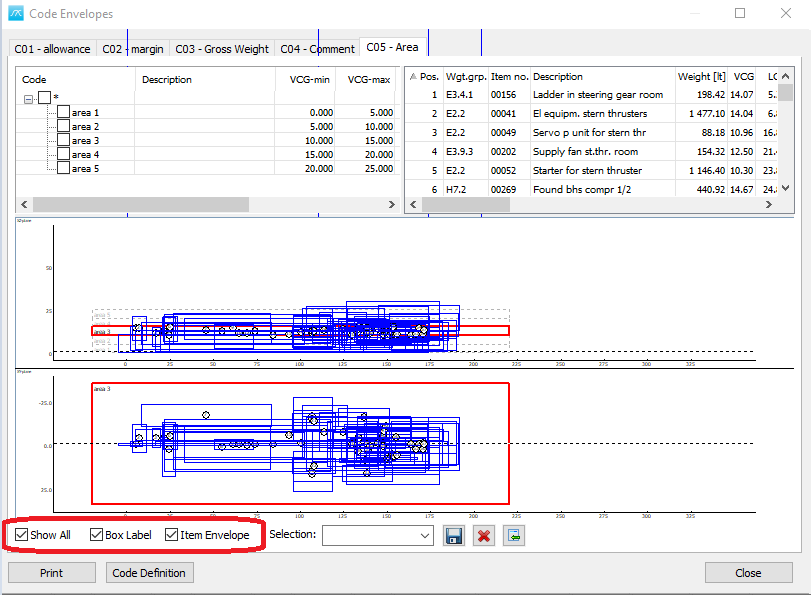

The window is divided into two parts: a tree view for browsing the code structure on the upper part, and the plot area on the lower part. By selecting one of the groups in a code structure, the items tagged to this group will be plotted both in the XY-plane and the XZ-plane. In the plot each item is represented by a number. The items are also listed.

image56_202

More:

buttonPlotting Multiple Envelopes in Envelope window
